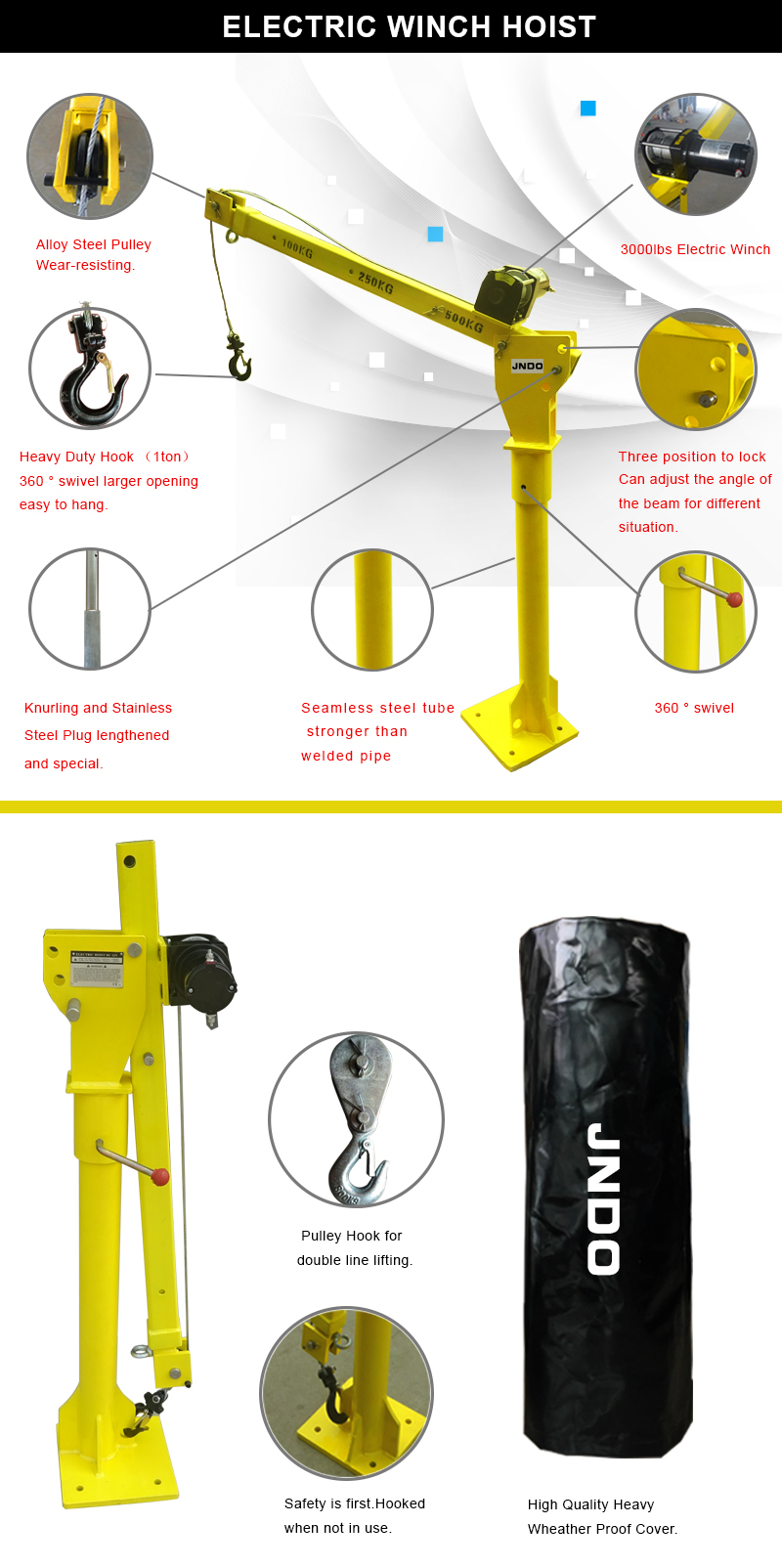

JN-HP1000 Electric Winch Hoist/Pickup Truck Crane

Detail Information
Capacity (max): 500KG.Single line,800KG.Double line
Power Input: 12V DC 125 Amps
Overload Protection: Disables Operation with 30 Second Re-start
Lifting Height (base to hook): 1940mm
Reach (max): 1490mm
Rotation (continuous) w/ Brake: 360° manual
Lifting cable: 4.8mm x 4.5m (single-rope), 4.8mm x 5.5m (double-rope)
Line Speed w/ No Load: 3.6m/min (single-rope)
Switch Cable Length: 4.2 m
Mounting Base: 250 x 250 x 18mm
Mounting Bolt Hole Pattern: 170 x 170mm
Finish: Power coated
Package: 1385×385×345/mm
G.W./N.W.: 66kg/55kg(wooden packege);
60kg/55kg(carton package)
